Sorter Robot

AUTOMATED SAMPLES SORTING FOR THE OPTIMAL STREAMLINING OF THE ANALYTICAL CHAINS
5

Dedicated operator pad and custom application

  • Rugged, long-lasting pad designed for use in the field,
  • Integrated RFID and barcode readers,
  • Scalable and fully customizable application according to the desired data.
5

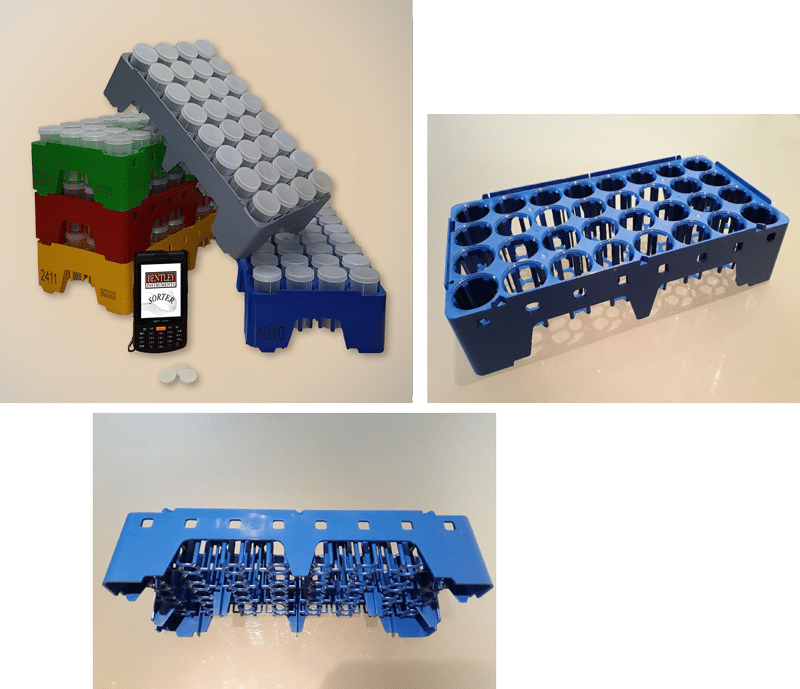

Technical specifications of standard trays

Height 91,0 mm
Length 370,0 mm
Width 190,0 mm
Weight 520g  ± 2%
Material ABS plastic Hl very high impact resistance
Operating temperature -18°C | +80°C
Vials diameter ≤ 35,8 mm
Vials height ≤ 78,8 mm (to allow stacking of trays)
Number of vials ≤ 32
5

Automated operation

  • Sorts according to 6 different analytical criteria,
  • Reading of trays and vials (identification by RFID or barcode),
  • Measures the level of milk in the vials,
  • Photography and specific management of non-compliant vials.
5

Optimized added value

  • Easy handling and eliminates monotonous tasks,
  • Centralized management and complete tracking of each sample (LIMS),
  • Increased productivity and flexibility in sample management.
5

Securing the process

  • Sample integrity (operating in a 4°C environment),
  • Quick sorting for the optimization of the supply of each analytical chain,
  • Operator safety thanks to laser presence sensors.

Dedicated operator pad and custom application

  • Rugged, long-lasting pad designed for use in the field,
  • Integrated RFID and barcode readers,
  • Scalable and fully customizable application according to the desired data.

Technical specifications of standard trays

Height 91,0 mm
Length 370,0 mm
Width 190,0 mm
Weight 520g  ± 2%
Material ABS plastic Hl very high impact resistance
Operating temperature -18°C | +80°C
Vials diameter ≤ 35,8 mm
Vials height ≤ 78,8 mm (to allow stacking of trays)
Number of vials ≤ 32
5

ÚDRŽBA A PODPORA

Služba zákazníkům vždy byla prioritou společnosti Bentley Instruments. Zaručujeme našim zákazníkům promptní pomoc pro optimální produktivitu.
Abychom zaručili nejvyšší úroveň produktivity, náš tým techniků se stará o instalaci, školení a diagnostiku vzdáleně i lokálně.
Platforma FreshDesk je k dispozici po registraci a poskytuje přístup k naší e-službě.

E-ticketová služba umožňuje položit našim inženýrům dotazy ohledně vašich problémů, technické databáze (historie zařízení, technické poznámky, manuály...), diagnostické nástroje (problém/řešení), celosvětovou síť výrobních inženýrů a servis po prodeji pro rychlou a interaktivní pomoc, která je k dispozici kdykoli.
